Application of Plate and Shell Heat Exchanger in Steam Heating Heat Transfer Oil
The plate and shell heat exchanger has excellent performance and rich adaptability. Today, let's talk about the application of the plate and shell heat exchanger in the steam heating and thermal oil operating conditions in the pharmaceutical industry.
In the working conditions of steam heating of heat conduction oil in the pharmaceutical industry, a plate and shell heat exchanger is used. The steam is 0.5MPa (A) saturated steam and the temperature is 151.87°C. D12 heat conduction oil needs to be heated to 150°C.
The logarithmic temperature difference of heating under this working condition is small, and the heating temperature cannot be reached by using a shell and tube heat exchanger. A larger NTU heat exchange equipment is required, and the equipment must be resistant to impact and corrosion. Efficient and stable.
The following is the actual application picture, before and after the replacement of the plate and shell heat exchanger:

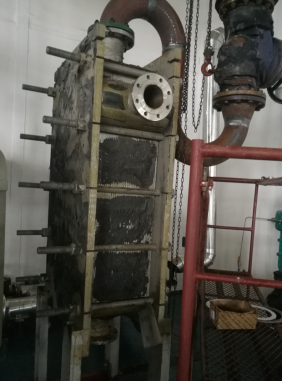

Before:

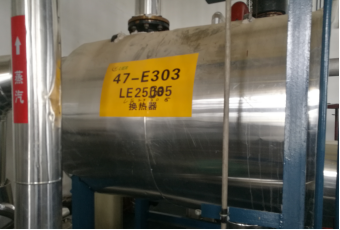

After:
By helping customers replace the heat exchanger, the customer's heat exchange efficiency is greatly provided, and the work efficiency has also been improved. Qingdao Reapter Heat Exchange Equipment Manufacturing Co., Ltd. has always designed and produced high-quality plate and shell heat exchangers in accordance with the principle of being responsible to customers.
For customers who do not know which machine to buy, we can select and design for you according to your working conditions for free, until you are satisfied.
Of course, we can also provide free samples of plates and gasket for such customers
