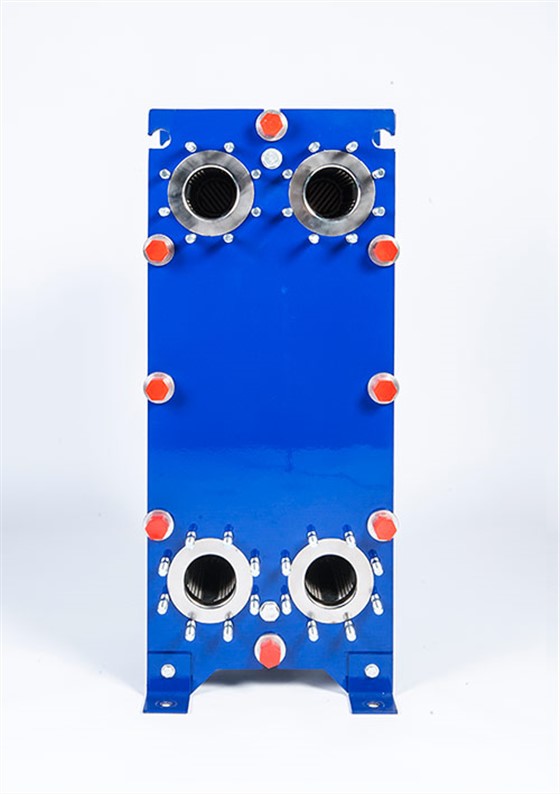

Wide gap plate heat exchanger

Wide gap plate heat exchanger

Product Introduction

A plate and frame heat exchanger as known as gasketed plate heat exchanger is a high efficiency heat exchanger that is assembled from a series of metal sheets with a certain corrugated shape. A thin rectangular channel is formed between the various sheets, and heat is exchanged through the sheets.

Product details

Principle

A plate and frame heat exchanger as known as gasketed plate heat exchanger is a high efficiency heat exchanger that assembled from metal sheets with corrugated pattern and different kind of gaskets. Plate heat exchangers are the ideal equipment for heat exchange between liquid-liquid and liquid-vapor.In the case of the same pressure loss, the heat transfer coefficient is 3-5 times higher than that of the tube heat exchanger, but the floor space is one-third of the tube heat exchanger, and the heat recovery rate can be as high as 90% or more.


Maximum volume: 5000m3 /h;Maximum design pressure: 25bar

Maximum temperature: 200 celsius degree; Minimum difference in temperature: 0.5-1 celsius degree

Nozzle diameter: DN15~DN500;Plate thickness: 0.4mm - 1.2mm

Gasket material:NBR, EPDM, HNBR,CR,VITON/FKM

Fixed and movable plate material: Carbon Steel, Stainless Steel, and others on request.

Plate material:AISI304, AISI316, AISI316L, Titanium,Ti-Pa,Hastelloy C276,254SMO,Nickel, AISI904L.

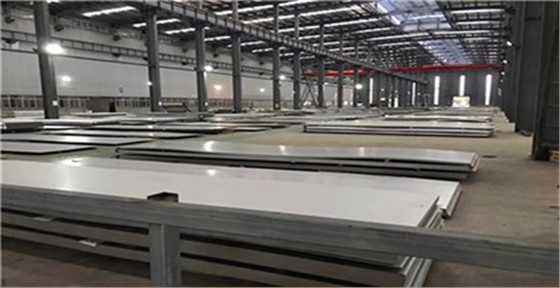

Stainless steel raw material

High-Quality Raw Mateiral, Lower Investment

Same stainless steel supplier and purchasing standard with Alfa Laval. Our product has good corrosion resistance, long service life, lower average use cost and lower investment cost.

European Standards Create Stable Quality

European Standards Create Stable Quality

Advanced equipment and production technology, our products comply with European production and management standards, stable quality, low failure rate, low cost of after-sales service and maintenance.

Experienced Engineers team

Experienced Engineers and Original Softwares Make Sure Scientific Design

A team of technical engineers with more than 20 years of experience has a database of all international brands' original factory software, and we can design models that are more in line with working conditions with lower operating costs.

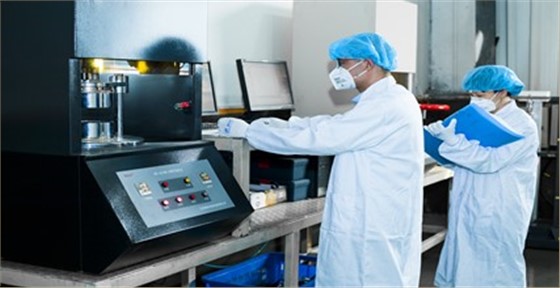

Heat Exchange Laboratory

Heat Exchange Laboratory Meets Various Technical Standards

Equipped with advanced laboratories, it can test any complex media, and then propose more scientific and rigorous solutions that meet the standards for the specific working condition.

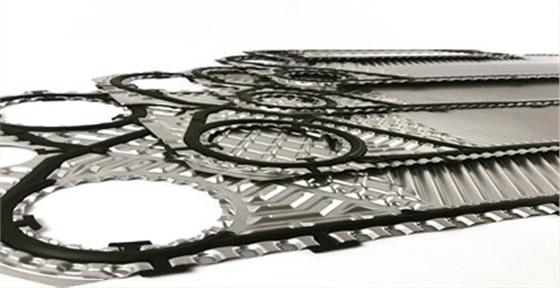

Rich in plates and gaskets

Rich In Plates And Gaskets, 100% Compatible With Global Brands

We have a full range of plates and gaskets that 100% compatible with international brands, rich in plate types, and the rubber gaskets will not leak after repeated disassembly.

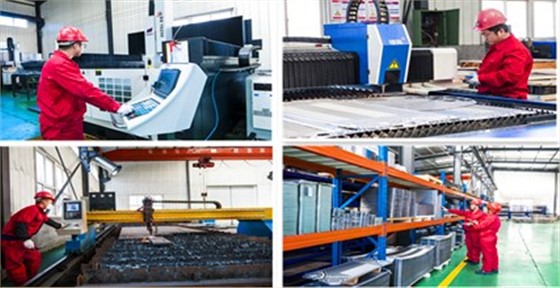

Engineers team for plate heat exchanger

Excellent Technicians Make Good Quality Heat Exchangers

The team of technicians with excellent manufacturing technology, precision workmanship, products have served European and American customers for more than 13 years, and can withstand the test of the market.



Product Display

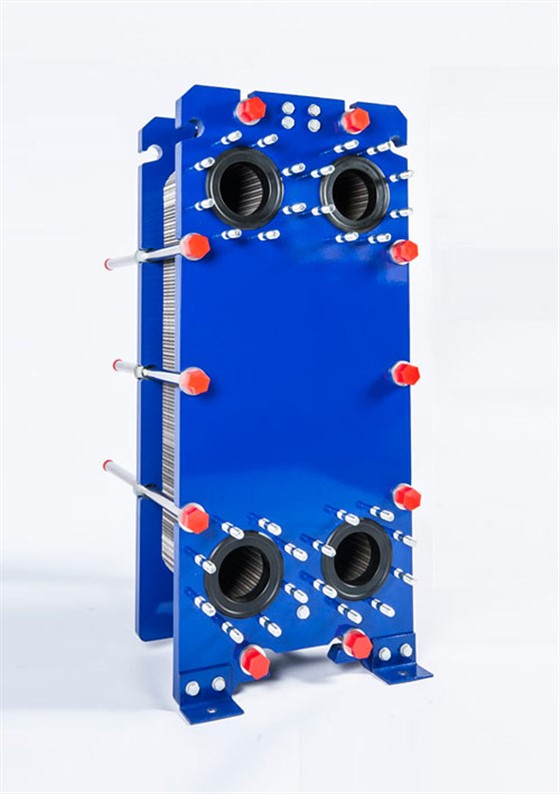

  • ?????-ATS150M/BPlate heat exchanger-ATS150M/B

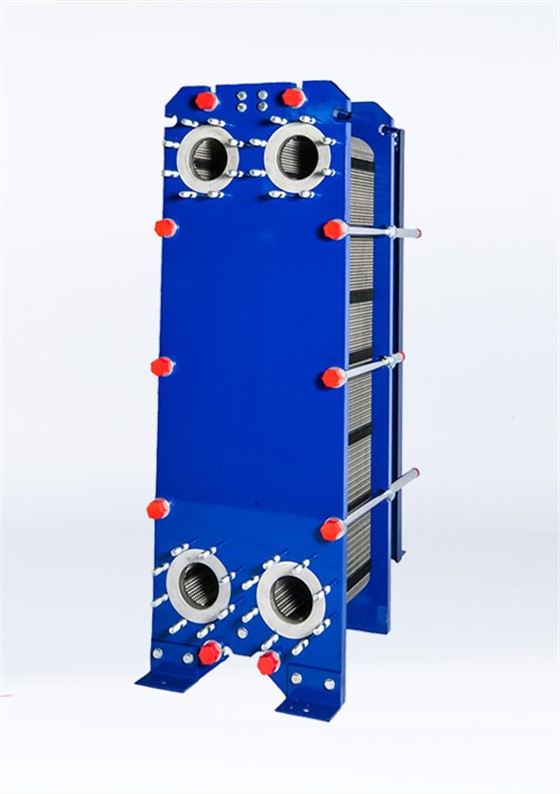

  • ?????-AT100M/BPlate heat exchanger-AT100M/B
  • ?????-AT150M/BPlate heat exchanger-AT150M/B
Selection and design
  • 01

    Our company has a set-up procedure for the selection and design of the plate heat exchanger. Depending on the specific working conditions provided by the user, the program can make the best solution for this particular condition. And we can provide the calculation data book and heat exchanger dimensional drawing in time. Our company can design and produce heat exchangers according to PED or ASME specifications, and we can provide corresponding factory documents for design, manufacture, inspection, etc. Also we can provide packaging and transportation according to requirements.

  • 02

    Our plate heat exchangers has passed the approval of relevant Chinese authorities and can be exported to countries all over the world. And we provide technical services and complete relevant documents for our customers.

  • 03

    Our plate heat exchanger has been applied in many countries around the world, and has been recognized by professional users in various industries. Its application in some industries is unique.

  • 04

    Our plate heat exchangers can be used in most processes that requiring heat exchange, and can be used in processes such as liquid-liquid, vapor-liquid, condensation, and evaporation.

Range of application

HVAC area; electric energy; food and pharmaceutical industry; steel industry; machinery manufacturing industry; chemical industry; textile industry;automotive industry etc.
