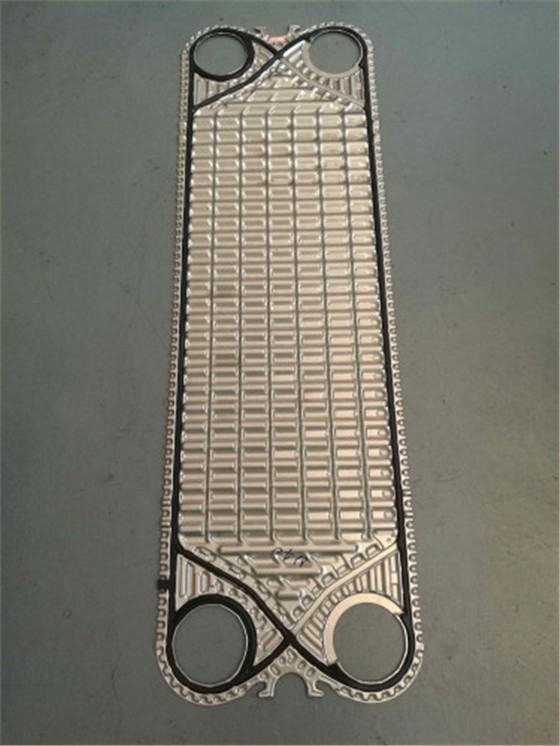

Introduction and application of wide runner plate heat exchanger

Wide runner plate heat exchanger, also known as free-flow plate heat exchanger, has a wider runner than ordinary heat exchanger, which can pass the medium with larger particles, breaking the restriction of traditional heat exchanger slot depth and narrow runner, making the application of detachable plate heat exchanger more extensive. So what are the advantages of wide runner plate heat exchanger? Let's find out.

Ordinary detachableplate heat exchanger groove depth is generally up to 4mm, while the wide runner plate heat exchanger can reach a depth of 12mm, which greatly improves the width of the heat exchanger's runner, which can pass through a relatively large particle, high viscosity media, such as pulp-based juice drinks, pure fruit juice, concentrated fruit juice, sugary drinks, etc. Due to the wide runner width, even juices containing pulp fibers up to 10 mm in length and up to 10 percent of the pulp content can operate without stress.

Wide runner plate heat exchanger, running up the pressure stability, good thermal condition, the width of the runner between the plate from 5mm-12mm, the flow rate can reach 50,000kg/h, the diameter of the angle hole from 50-300mm, customers can freely select the appropriate plate type according to the media.

Reapter Ltd. specializes in the production of plate heat exchanger, has a variety of plate type wide runner plate heat exchanger and plate gasket and other accessories, to meet the different needs of customers, welcome customers to inquire and buy.
