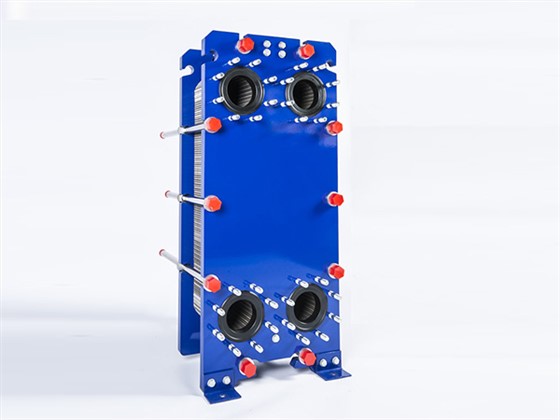

Model representation method of plate and frame heat exchanger

Many people only know what it does when they use plate and frame heat exchangers, because it is also easy to understand literally, but the problem is that they do n’t know the origin of their models, domestic ones do n’t know, and imported ones do n’t even Too. Today, let me tell you how to express the model of plate and frame heat exchanger.

In general, the expression method of plate and frame heat exchangeris: X Y-P / T.

X is the plate type code, Y is the plate parameter, P is the design pressure (MPa), and T is the design temperature (° C).

For example:

If the plate type is M, the diameter of the corner hole of the plate is 20cm, the design pressure is 1.6MPa, and the design temperature is 100 ?, the plate and frame heat exchangeris expressed as: M20-1.6 / 100.

If the plate type is V, the nominal heat exchange area of the plate veneer is 1.3?, the design pressure is 1.0MPa, and the design temperature is 120 ?. The plate and frame heat exchangeris expressed as: V13-1.0 / 120.

In fact, the unified standards for products will bring the following two problems. First, they cannot reflect the characteristics of the company's products. Second, the structural characteristics of the products are easily identified, which is not conducive to fair competition. Therefore, as a unified representation, as long as the model number is reflected in the model, the plate characteristic parameters (corner hole diameter or veneer area), design pressure and temperature parameters are enough.

plate and frame heat exchangers are an indispensable part of many industrial production links, but don't underestimate this small link. In the current environment pressure is generally too large, it plays an important role in energy saving and emission reduction The role of the environment is very helpful for the assumption of an environment-friendly society.

So you will understand, next time I will bring you specific model analysis, such as some international well-known brands such as Alfa Laval, Tranter, APVand other plate and frame heat exchangermodel representation methods, I hope you will continue to pay attention to Qingdao RuiputeHeat Exchange Equipment Manufacturing Co., Ltd. official website, to bring you a comprehensive knowledge of plate and frame heat exchangers.
