Qingdao Ruipute has been committed to the application innovation and development theplates of plateheat exchanger with its strong strength and innovative spirit. The forefront of the development of the device industry.

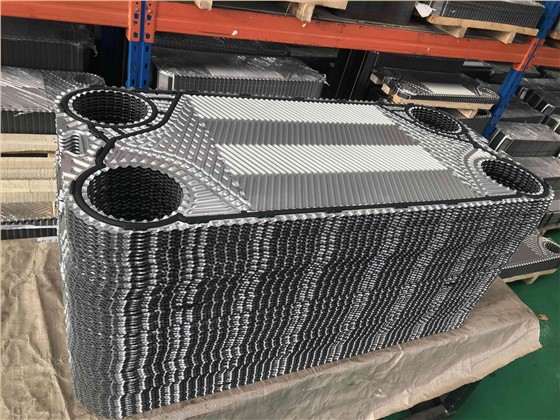

The plates of the company's plate heat exchangers are all formed by the most advanced automated giant press and high-precision molds. The advantages are:
lThe corrugation depth is the same on the same plate, so as to ensure the perfect connection of each contact point;
lThe pressure bearing capacity of the plate is enhanced to avoid thermal stress fatigue and mechanical fatigue corrosion caused by vibration and high-frequency tremor;
lThere is no excessive stamping area on the plate, and no hidden cracks (cracks that can be found under the microscope) will be generated;
lThe plate has better mechanical properties, avoiding leakage caused by hidden cracks.
lThe height of the metal lines on the plate is uniform; the contact points are evenly distributed. When the medium flows through the plate, the turbulence is strengthened to maximize the heat transfer efficiency.
lThe thinnest plate can be up to 0.4mm; reduce the weight of the equipment and obtain a higher heat transfer coefficient under the requirement of ensuring the pressure.
lThe plate has soft and hard plates, some special plate types, there are two different angles of corrugation on the same plate, and a variety of flow channel combinations can be obtained;
lThe plate has various groove depth specifications such as shallow groove, deep groove and super deep groove. The depth of the corrugated groove is 2 ~ 12mm, which can meet the requirements of various working conditions;
lAccording to the different requirements of customers, there are unilateral flow and multi-flow side;
lDue to the high density of the mold, our company has a full range of plate materials. In addition to ordinary austenitic stainless steel, it can also press 254SMo dual-phase steel, Ti, Ni, aluminum-magnesium alloy, C276, G30 and other materials. It can press plates with thickness range of 0.4-1.3mm.
lThe plates of our company are all pressed at one time. Before the plates are pressed, the volatile oil and the surface coating of the plates are applied. This can effectively protect the mold, at the same time enhance the ductility of the plates, and greatly reduce the cracks caused by hydraulic stretching....
The reasonable guide area setting of the platesof plate heat exchanger, even if the length and width of the plates are relatively small, can make the fluid fully evenly distributed in each position of the plates, so that all the heat exchange areas participate in efficient heat exchange, and no heat exchange death Zone, there is no flow dead angle, and chloride corrosion caused by fouling is not easy to occur; the pressure loss in the split area is minimized, the allowable pressure drop can be fully utilized, the flow rate of the convection heat exchange part is increased, and the overall heat exchange efficiency is improved.
