Plate and shell heat exchangers have a wide range of applications. Now more and more factories tend to use plate and shell heat exchangers. So, what is the internal structure of plate and shell heat exchangers? Let me talk about it today.

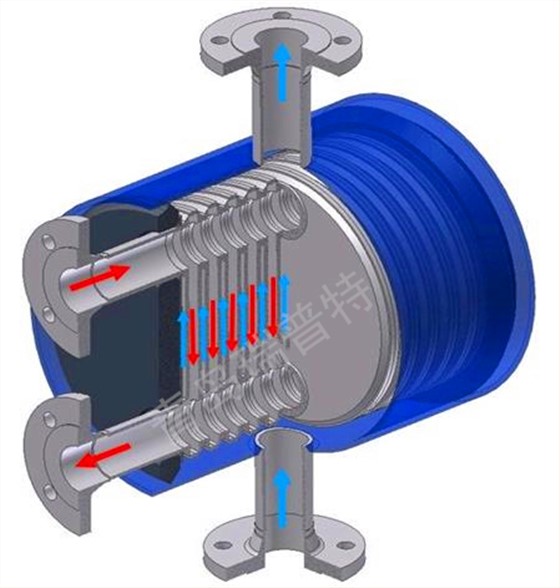

The plate and shell heat exchanger mainly includes two independent pressure parts,

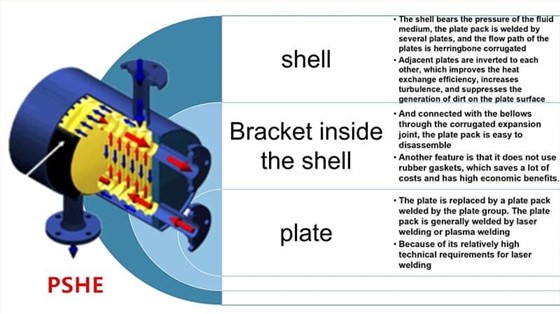

You can watch it together with the chart, the original portal:
1. The board pass includes a series of circular corrugated sheets, which are alternately welded together at the openings on the circumference or the sheets;
2. The outer side of the shell side is a cylindrical shell, which can be completely welded, open on one side or open on both sides.
In addition to this, another component of the plate and shell heat exchanger is the spoiler, which acts as a spoiler on the shell side.
Qingdao Ruipute Heat Exchange Equipment Manufacturing Co., Ltd. has the invention patent for a new plate and shell heat exchanger. After several years of development, it has also been mass-produced, with stable quality, high heat exchange efficiency, and a wide range of applications. Has been recognized by most customers.
Because we are a factory, we guarantee that all products we export are factory prices.
