The plate condenser consists of plates that are welded together in pairs to form a so-called plate set. The concept of a plate set leads to two different types of channels: a weld channel for condensing steam and a gasket seal channel for cooling water. This type of plate is specially designed for optimum condensation. It has an asymmetrical arrangement with a large gap on the steam side and a small gap on the cooling water side. This makes it possible to maintain a very low pressure drop at the steam end while maintaining a certain speed and turbulence on the cooling water side. This maximizes heat transfer efficiency and minimizes fouling.

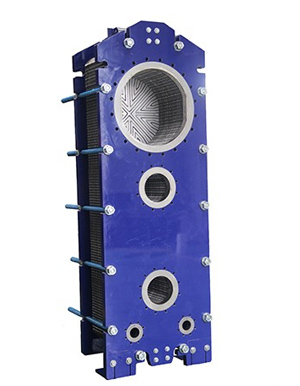

Plate condensers are specially developed for condensing steam under low pressure or vacuum conditions in evaporation and distillation systems. It can meet a variety of specific applications and capabilities requirements. The steam inlet fitting is large and the two condensate outlets are small. The cooling water fitting is a medium size and is located in the center of the plate.

Maximum heat transfer area: 500m2/set; Maximum design pressure:16bar

Maximum temperature:200 celsius degree; Nozzle diameter:DN50~DN700

Plate thickness:0.5mm-1.2mm; Gasket material:NBR, EPDM, HNBR, CR, VITON/FKM

Fixed and movable plate material: Carbon Steel, Stainless Steel, and others on request.

Plate material:AISI304, AISI316, AISI316L, Titanium, Ti-Pa,Hastelloy C276,254SMO,Nickel, AISI904L.
